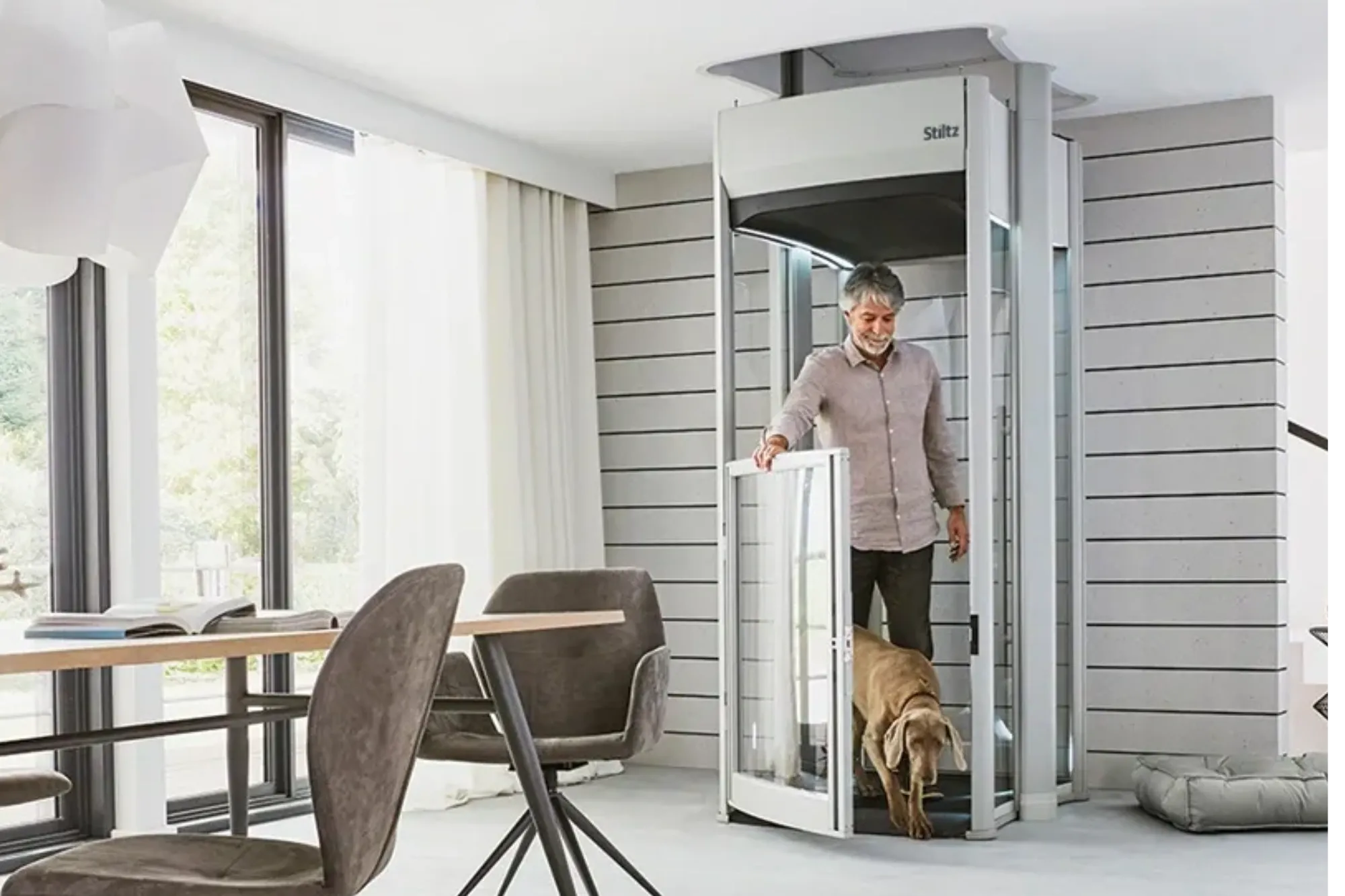

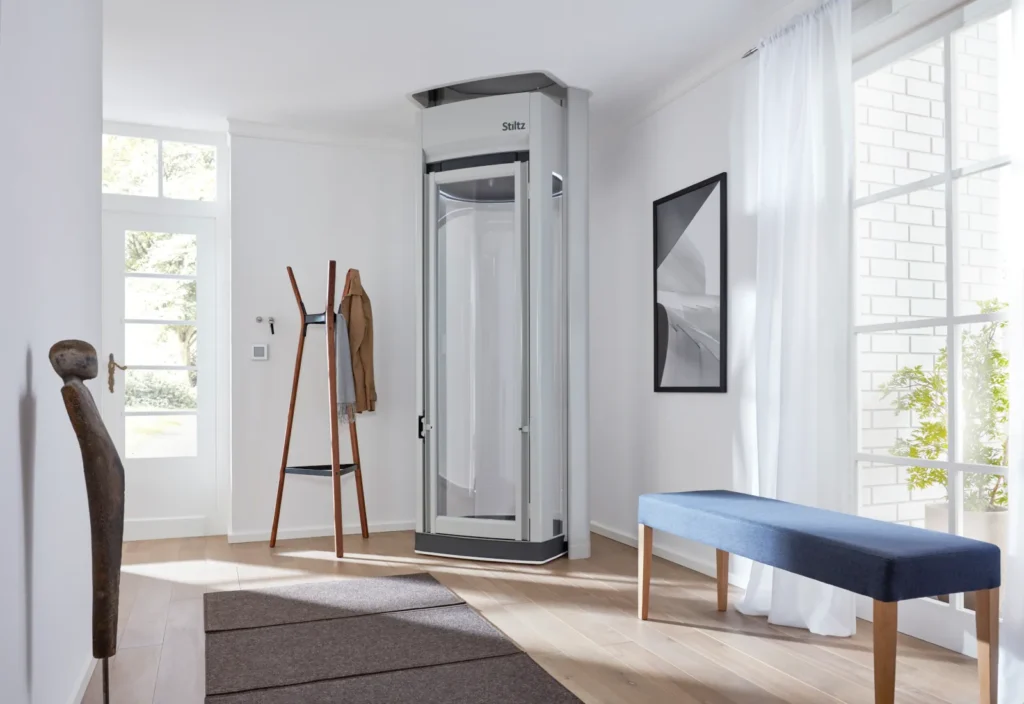

Stiltz Duo+ is a free-standing, self-supporting lift with no visible hoist and no noisy motor. It offers a small footprint, quiet travel, and fast installation, making it ideal for modern spaces.
Why choose this product?
Unique Selling Proposition (USP)
- Free-Standing Design: No visible hoistway or noisy motor, allowing for flexible placement within the home.
- Minimal Footprint: Occupies only 0.55m² of surface area, making it ideal for compact spaces.
- Quick Installation: Modular sections enable installation in just one day, minimizing disruption.
- Energy Efficient: Plugs into a standard domestic power socket, similar to any household appliance.
- Self-Contained Systemt: Drive system is housed within the lift, eliminating the need for external power packs.
Technical Specifications
- Lift Type: Domestic personal homelift that complies with the Machinery Directive 2006/42/EC. In addition, the EN81 range was built, developed and operated in accordance with BS EN81-41:2010.
- Standard Colour: Grey (RAL 7038)
- Load Capacity: Max. 170kg / 2 people.
- Illumination: Contemporary ambient lighting with high-quality LED strips.
- Drive: Self contained rope drum, braked gear motor drive. Enclosed within the lift car roof space.
- Electricity: 220V – 240V, 10A – 20A socket – Plugs into a standard domestic power socket.
- Control: Lift is controlled via the control panel and two remote controls. Additional remote controls are available.
- Entrance: Single door.
- Speed: Nominal speed: 100mm / sec. Max speed: 150mm / sec.
- Travel Limit: Two floors. With a maximum of 4500mm of travel.
- Lift Car Door: 1100mm hinged half-height door or full-height door options available. LED light curtain will protect the upper half of the car regardless of door height.
- Dimensions: 1937mm - Max. internal car height, 2400mm - Max. external car height, 860mm x 1320mm - Max. lift car footprint, 679mm x 673mm - Internal car footprint, 1047mm x 810mm - Floor cut-out, 587mm - Lift entrance width.
- Height Limit: 2200mm - Min. upper floor ceiling height, 2400mm - Max. upper floor ceiling height, for maximum car height.
- Footprint: 0.55m²
Frequently Asked Questions (FAQ)
What is the footprint of the Stiltz Duo+?
The Stiltz Duo+ has a small footprint, covering just 0.55m² of surface area, making it one of the smallest homelifts on the market.
Is the Stiltz Duo+ noisy during operation?
No, the Stiltz Duo+ is powered by a quiet electric self-contained motor and has no noisy hydraulics, ensuring quiet travel.
How long does it take to install a Stiltz Duo+?
The Stiltz Duo+ is made up of modular sections, and standard installations typically take just one day.
Does the Stiltz Duo+ require a machine room or external power packs?
No, the Stiltz Duo+ has a self-contained drive system housed at the top of the lift, eliminating the need for external power packs or a machine room.
What is the difference between Duo+ and Trio+?
Duo+ supports 2 people (170 kg), while Trio+ supports 3 people or a wheelchair (250 kg) and offers wider entry/exit points for accessibility.
